Ultra Encode SDI Plus Module
Ultra Encode SDI Plus Module

Encoding module for rack-mounted centralized deployment

SKU: B31610000

  • A hot-swappable module to be installed in Modator Chassis
  • Supports common encoding formats and streaming protocols, including NDI® HX3
  • Powerful encoding performance with support for streaming and recording schedule
  • Centrally manageable via the Modator Chassis and Magewell Control Hub

*Magewell also offers the standalone form-factor of the same specification.

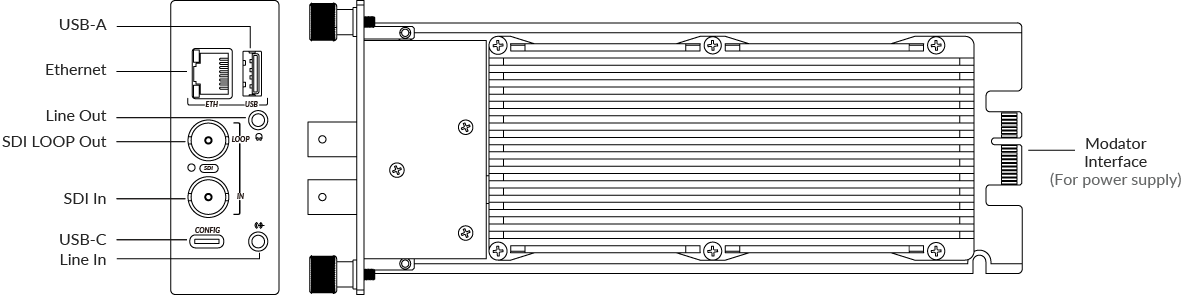

Interface

Specifications and Features

Input & Loop-Through Features

  • Support for up to 4096x2160 30fps input and loopthrough signals
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input audio from 3.5 mm LINE IN

Encoding Features

  • Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
  • Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
  • Support for H.264/HEVC video encoding
  • Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
  • Encoding 8-channel AAC and audio channels mapping
  • Side-by-Side 3D video encoding

Streaming Features

  • Natively support Facebook, Twitch, YouTube and WOWZA
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
  • Allow simultaneous 6 sessions over multiple streaming protocols
  • Support for streaming schedule

Recording and screenshot

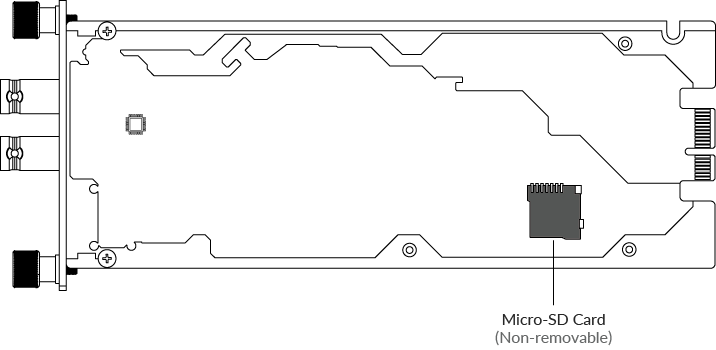

  • Record to internal storage (supplied 128GB Micro-SD card), external USB storage or network attached storage (NFS/CIFS)
  • Video recordings in MP4, MOV or TS format
  • Normal recording and loop recording supported
  • Support for recording schedule

Others

  • Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
  • HTTP-based APIs for custom integration
  • 2-year warranty
Full specifications and features
