Pro Convert 12G SDI 4K Plus Module
Pro Convert 12G SDI 4K Plus Module

Converts a 12G-SDI input signal into NDI® High-Bandwidth with loop-through

SKU: B40910000

  • A hot-swappable module to be installed in Modator Chassis
  • Supports inputs up to 4Kp60 with 16 channels of embedded audio
  • Centrally manageable via the Modator Chassis and Magewell Control Hub

*Magewell also offers the standalone form-factor of the same specification.

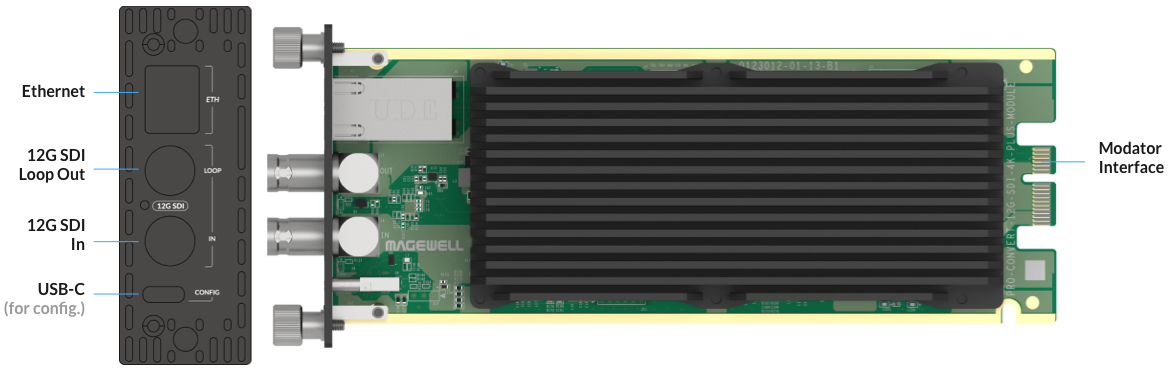

Interface

Specifications and Features

Input & Loop-Through Features

  • Single-link 12G-SDI input and loop-through
  • Support for up to 4096x2160 60fps input
  • Support for 16-channel SDI embedded audio inputs

NDI Encoding Features

  • Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
  • Sends NDI streams across network segments
  • Remotely controls PTZ cameras using protocols of Visca UDP via NDI
  • Encodes 16-channel NDI-embedded audio
  • Support for NDI 6.2

Others

  • Very low latency
  • Configure through the touch screen of Modator Chassis, Web GUI or Control Hub
  • HTTP-based APIs for custom integration
Full specifications and features
What's Included
tag-icon

Pro Convert 12G SDI 4K Plus Module x1

Part number: B4091
